| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | AI |
| Chứng nhận: | ISO |
| Số mô hình: | PQ-3 |
| Document: | PQ-3 Ferrous Debris Monitor...or.pdf |
| Số lượng đặt hàng tối thiểu: | 1 đặt ASTM D8184 MANINTOR DEBRIS DEBRIS |
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | ASTM D8184 Monintor Debris We |
| Thời gian giao hàng: | 30 ngày |
| Điều khoản thanh toán: | L/C,T/T,Công Đoàn Phương Tây |
| Khả năng cung cấp: | 100 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | ASTM D8184 | Nguồn cung cấp điện: | AC110~240V, 50/60Hz |
|---|---|---|---|
| Dải đo: | 0 ~ 15000pq | Khối lượng mẫu: | 5ml |
| Hiển thị: | Màn hình cảm ứng LCD màu 5,6 inch | Cấu trúc: | 402 × 266 × 186mm3 |
| Trọng lượng: | 6kg | Bảo hành: | 1 năm |
| Làm nổi bật: | Ferrous Wear Debris Monintor,ASTM D8184,PQ Index Analyzer |
||
Introduction:

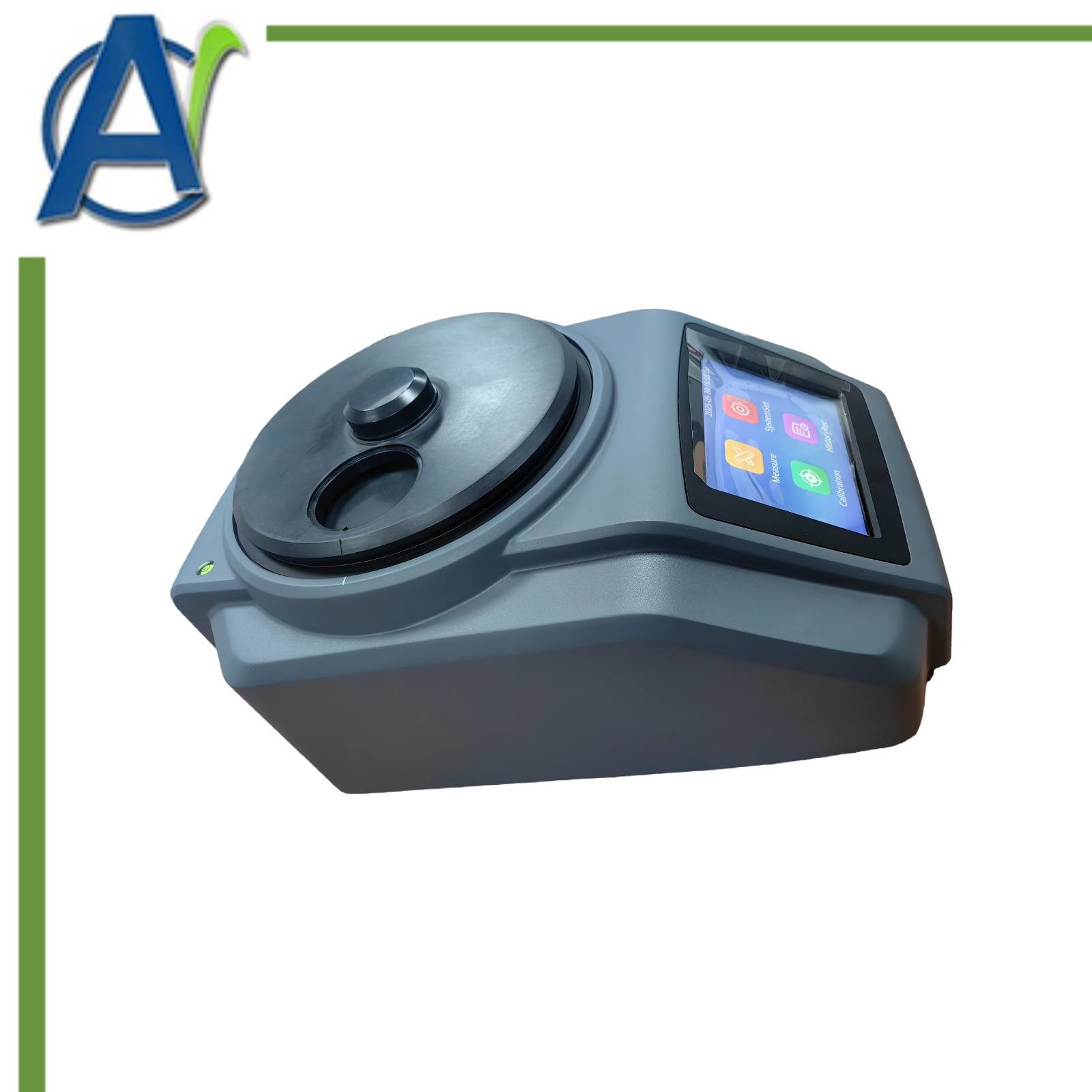

This Ferrous Wear Debris Monintoris mainly used for rapid quantitative analysis of ferromagnetic wear particles in oil and measuring the PQ index in oil samples.
PQ index is a dimensionless quantitative number with a good linear relationship with the content of ferromagnetic wear particles in the sample and the size of the wear particles. Since the PQ index is more sensitive to large size ferromagnetic abrasive particles, it is often used in combining with elemental analysis to improve the fault detection rate.

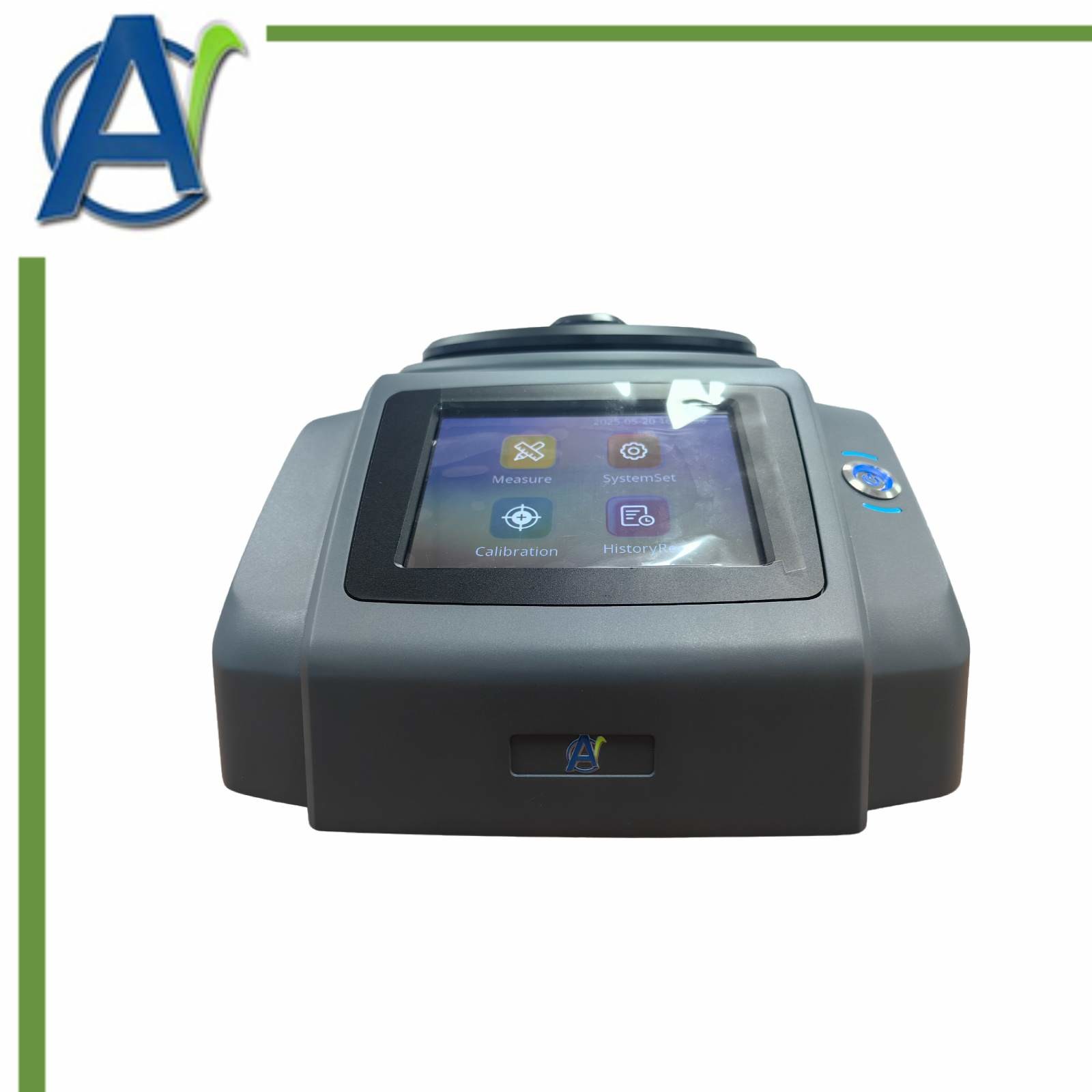

Each operation option is displayed in the display through a 5.6 inch touching screen interface. The user can select the applicable test method and name the measurement data through the detailed settings, or quickly test the oil through the default settings. The results will be displayed in real time during the measurement.
The oil samples recommended to put into the oil sample bottle to do measurment. the instrument is equipped with a 4.5ml oil sample bottle and the matching the conversion ring.
| Measure range | 0~15000PQ |
| Sample volume | 5ml |
| Capture wear particle | >5 μm (ferromagnetic wear particles) |
| Repeatability |
Measure stable oil samples (such as 750 standard samples), repeat the measurement 100 times, and 90% of the data is within ±0.5% or ±3PQ
|
| Power Supply | AC110~240V, 50/60Hz |
| Size | 402×266×186mm3 |
| Standard package |
Ferrous debris monitor+0PQ, 750PQ and 100-120PQ calibration standard+100pcs 5ml oil box+charging adapter+cables
|
| Weight | 5KG / Shipping weight:15KG |
| Reference standard | ASTM D8184 |
