| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Advanced Instruments |
| Chứng nhận: | ASTM D5481 |
| Số mô hình: | HTHS-II |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | US$50000-60000/set |
| chi tiết đóng gói: | Vỏ gỗ dán |
| Thời gian giao hàng: | 40 ngày |
| Điều khoản thanh toán: | T/T, L/C, D/P. |
| Khả năng cung cấp: | 50 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | ASTM D5481 | Bảo hành: | 1 năm trọn vẹn |
|---|---|---|---|
| Gói vận chuyển: | Vỏ gỗ dán | nhãn hiệu: | Dụng cụ nâng cao |
| Nguồn điện: | AC220V 50Hz | Dịch vụ OEM: | Có sẵn |
| Phạm vi nhiệt độ: | Môi trường xung quanh ~ 150oC | Ứng dụng: | Kiểm tra dầu động cơ |
| Chức năng: | Kiểm tra chỉ số độ nhớt động ở nhiệt độ thấp | ngôn ngữ phần mềm: | Tiếng Anh |
| Phương pháp kiểm tra: | Máy đo độ nhớt mao quản đa cell | Độ chính xác nhiệt độ: | 0,1oC |
| Phạm vi dòng chảy: | 0~200ml/giờ | Hiển thị nội dung: | Áp suất thử nghiệm, Thời gian thử nghiệm, Thời gian không đổi |
| Điều khiển: | màn hình LCD cảm ứng | ||
| Làm nổi bật: | ASTM D5481,HTHS Dynamic Viscosity Tester,Hths Apparent Viscosity |
||

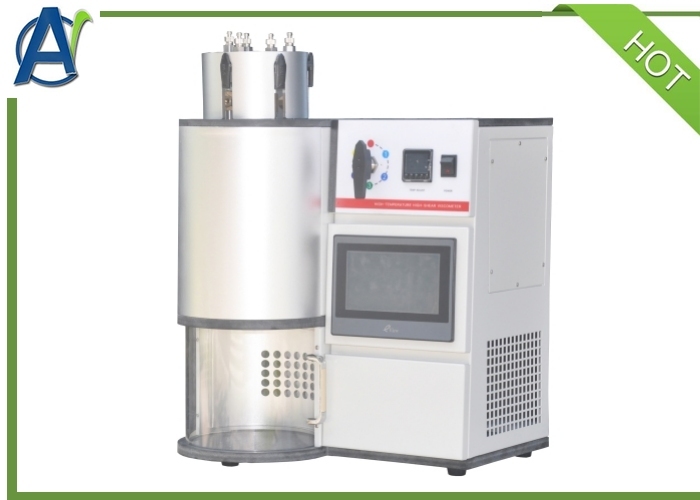

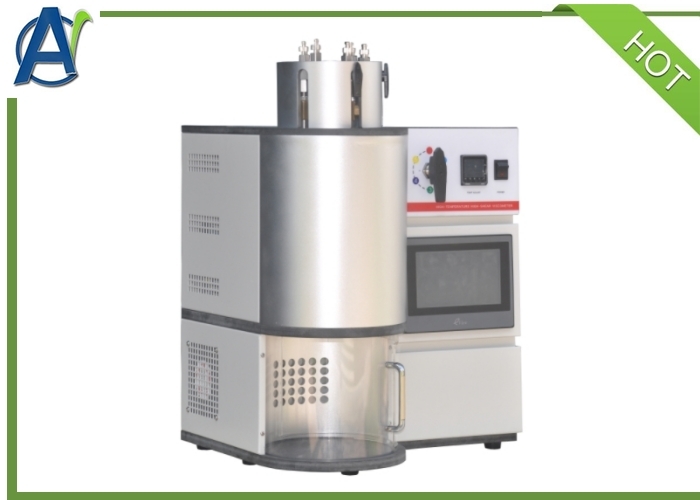

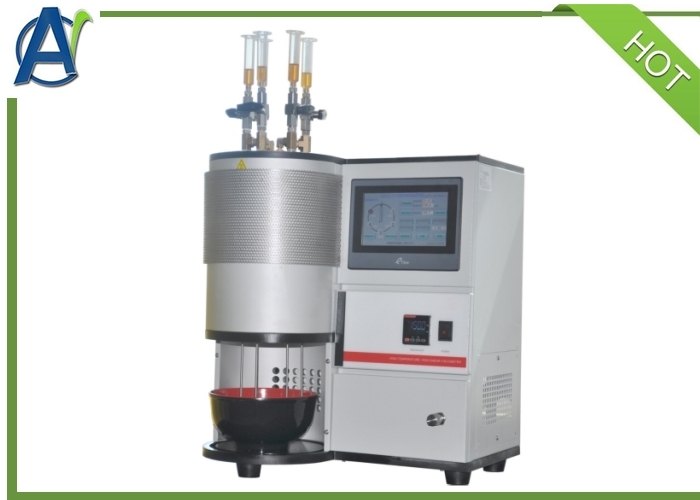

This Lubricating Oil HTHS Dynamic Viscosity Tester This instrument employs a multi-capillary viscometer equipped with pressure-measuring, temperature-measuring, and timing devices to determine the high-temperature high-shear (HTHS) apparent viscosity of engine oils under the conditions of 150°C and a wall apparent shear rate of 1.4 × 106s-1.
Using the shear rate specified in this standard can reduce the differences between this method and other test methods for determining high-temperature high-shear apparent viscosity.
Viscosity is measured directly via a calibration curve established using Newtonian oils with apparent viscosities ranging from 2 mPa·s to 5 mPa·s at 150°C.
1.Widely Adopted: Trusted by most domestic customers for reliable performance.
2.Interchangeable Parts: Accessories compatible with imported instruments for easy maintenance.
3.Dedicated Software: Equipped with specialized HTHS viscosity calculation software for accurate data processing.
4.24/7 Operation: Designed for uninterrupted 24-hour, 365-day use in demanding labs.
5.Efficient Cleaning: No solvents needed; only a small fresh sample flush required between tests.
6.Standardized Capillaries: Precision glass capillaries (0.15 mm ID, 16 mm length) fully compliant with standards.
7.Flexible Testing: Customizable shear rates and temperatures for research applications.
8.High Throughput: 5 sample cells enable sequential testing at 15–20 samples per hour.
9.Intuitive Control: Touch LCD screen for direct, user-friendly operation.
10.Smart Reporting: Software auto-recommends test pressures and generates Excel-compatible reports.
11.Patented Technology: Protected under Patent No. ZL201821712254.6 for oil shear viscometry.
| Model | HTHS-II |
| Applicable Standards | ASTM D5481 |
| Heating Mode | Electric heating rod |
| Test temperature | Room temperature ~ 150 ℃ |
| Temperature control accuracy | ±0.1 ℃ |
| Working unit | 5measuring cell |
| Control mode | Touch LCD screen |
| Shear Rate | 1.4 × 106 s-1 |
| Result calculation | Windows-based HTHS viscosity calculation software |
| Display content | Test pressure,test time,sample soaking time |
| Power Supply | AC220V, 50Hz |
| Pressure Range | 350~3500kpa(50~500psi)Pressure Control Accuracy:≤±1% |
| Total Power | 500w |
| Dimensions |
300mm*500mm*700 mm |
| Net Weight | 50KG |
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
