| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Advanced Instruments |
| Chứng nhận: | ASTM D5293 ASTM D2602 |
| Số mô hình: | CCS-III |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | US$65000-75000/set |
| chi tiết đóng gói: | Vỏ gỗ dán |
| Thời gian giao hàng: | 40 ngày |
| Điều khoản thanh toán: | T/T, L/C, D/P. |
| Khả năng cung cấp: | 20 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | ASTM D5293; ASTM D2602 | Bảo hành: | 1 năm trọn vẹn |
|---|---|---|---|
| Gói vận chuyển: | Vỏ gỗ dán | nhãn hiệu: | Dụng cụ nâng cao |
| Phương pháp làm lạnh: | bán dẫn | Nguồn điện: | AC220 V 50Hz |
| lấy mẫu: | Tự động | Dịch vụ OEM: | Có sẵn |
| Phạm vi nhiệt độ: | -5oC~-35oC | Hoạt động: | Điều khiển máy tính |
| Ứng dụng: | Kiểm tra dầu động cơ | Chức năng: | Kiểm tra chỉ số độ nhớt động ở nhiệt độ thấp |
| ngôn ngữ phần mềm: | Tiếng Anh | Tế bào thử nghiệm: | 16 mẫu thử nghiệm liên tục |
| Làm nổi bật: | ASTM D5293,ASTM D2602,Automatic Apparent Viscosity Tester |
||

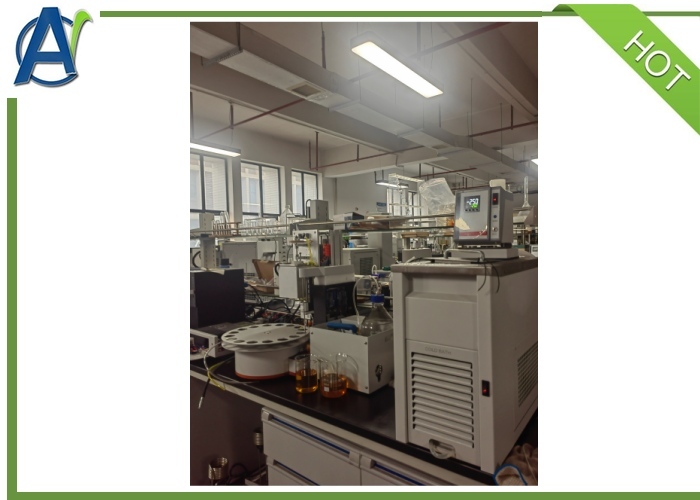

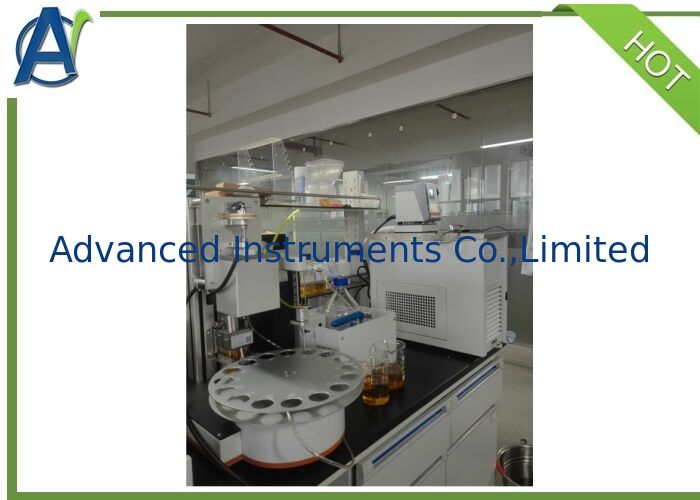

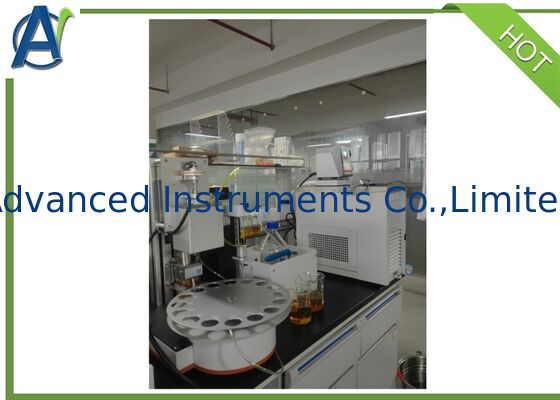

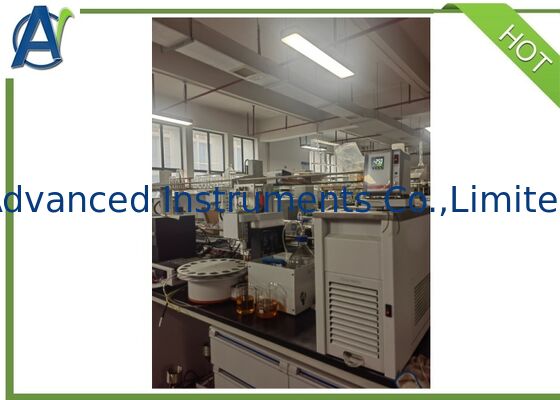

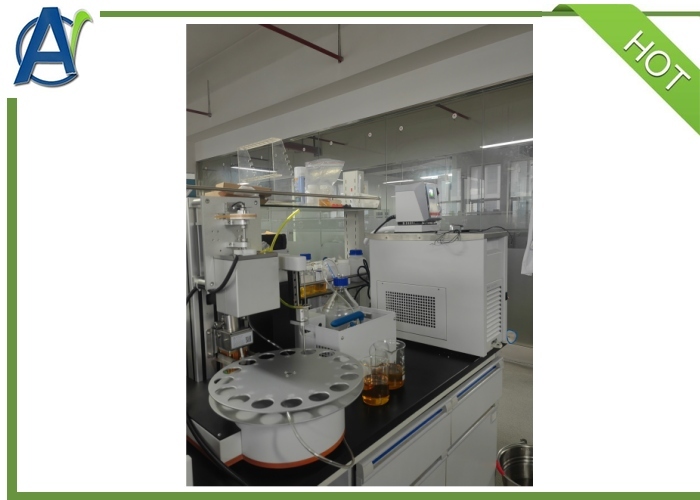

The Cold Cranking Simulator mainly tests the low-temperature dynamic viscosity index of engine oil, and the instrument is automatically controlled by a computer. Automatic sampling,cleaning, and viscosity calculation results.
1. The Cold Cranking Simulator can automatically detect speed and control current, reduce human error;
2. Driven by imported motor, high precision;
3. Semiconductor refrigeration system can quickly test any temperature;
4. The result is automatically calculated after calibration by standard oil;
5. Computer control, Windows operating system, XP, Win7, can be connected to a printer to print results;
6. Improved rotor, low torque test state, high repeatability;
7. Automatically generate calibration curve and directly display the test viscosity result;
8. All test processes are controlled automatically without manual operation, and the test will automatically stop and increase
temperature after the test;
9. The CCS Cold Cranking Simulator can automatically recommends the refrigeration temperature;
10. Rotary encoder detects speed;
11. Viscosity measurement range: 900mPa.s~25000mPa.s;
12. The results of 20 standard oils can be edited;
13. This Cold Cranking Simulator is equipped with dedicated low-temperature refrigeration cycle equipment
14. The Apparent viscosity tester can automatically calculate the standard oil calibration deviation to help users check the accuracy of the calibration data;
15.All working status displayed on LCD screen.
16. Patent of Cold Cranking Simulator using semiconductor refrigeration, patent number: ZL201822076893.4
17. Patent of lubricating oil apparent viscosity tester with automatic sampling and automatic cleaning structure, patent number:ZL201822076944.3.
|
Applicated standard
|
GB/T6538, ASTM D2602,ASTM D5293
|
|
Refrigeration method
|
Semi-conductor
|
|
Circulatioini method
|
multifunctional plastic steel pump
|
|
Temp.controlling method
|
Digital PID temperature controller
|
|
Detection method
|

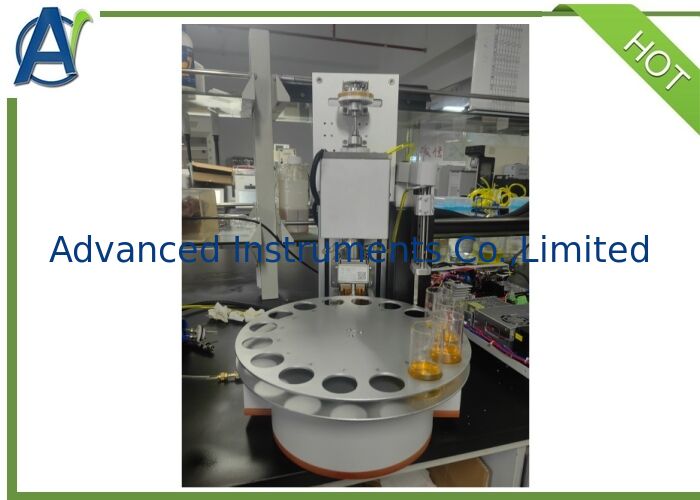

Automatic sampling,automatic cleaning,automatic test
|
|
Data processing
|
Automatic saving
|
|
Temp.controlling range
|
-5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC (optional -40ºC)
|
|
Power supply
|
AC220 V 50Hz
|
|
Temperature controlling accuracy
|
±0.02ºC
|
|
Testing Cell
|

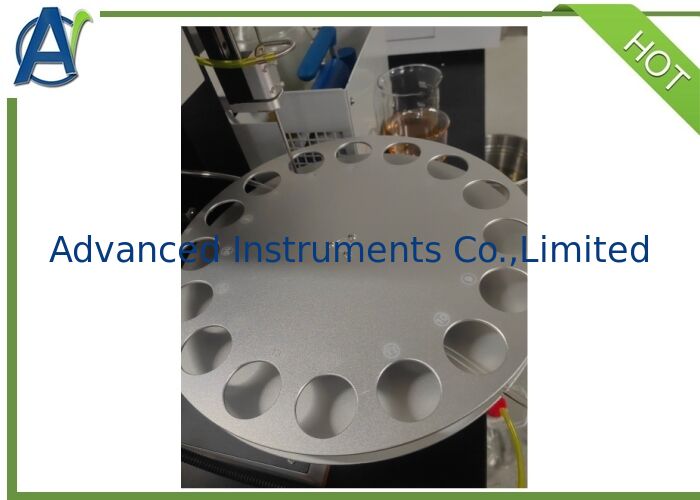

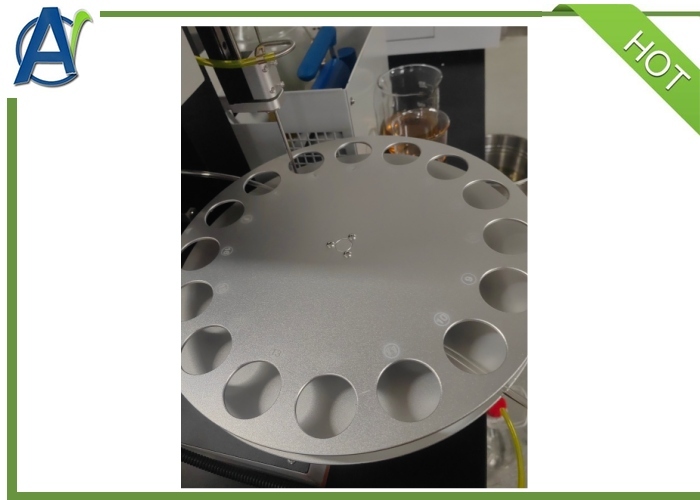

16 Samples Continuous Testing
|
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
