| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | AI |
| Chứng nhận: | ISO |
| Số mô hình: | PC-P6R |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | USD$10,000~15,000 |
| chi tiết đóng gói: | hộp gỗ dán |
| Thời gian giao hàng: | 30 NGÀY |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây, L/C |
| Khả năng cung cấp: | 50 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | ISO4406;NAS1638;SAE4059cpc | Bảo hành: | 1 năm trọn vẹn |
|---|---|---|---|
| nhãn hiệu: | Dụng cụ nâng cao | Dịch vụ OEM: | Có sẵn |
| Ngôn ngữ: | Tiếng Anh | Nguồn sáng: | Laser bán dẫn |
| Phạm vi kích thước hạt: | 0,8 ~ 600 mm | kênh phát hiện: | 64 kênh, kích thước hạt do người dùng cài đặt |
| Khối lượng lấy mẫu: | 0,2 ~ 6000mL | độ chính xác lấy mẫu: | Tốt hơn ± 0,5% |
| tốc độ dòng lấy mẫu: | Tốc độ dòng lấy mẫu 5~80 mL/phút | Tốc độ dòng chảy xả: | 5 ~ 80 ml/phút |
| Làm nổi bật: | ISO4406 hydraulic oil cleanliness tester,NAS1638 portable oil particle counter,GJB420A/B oil test equipment |
||

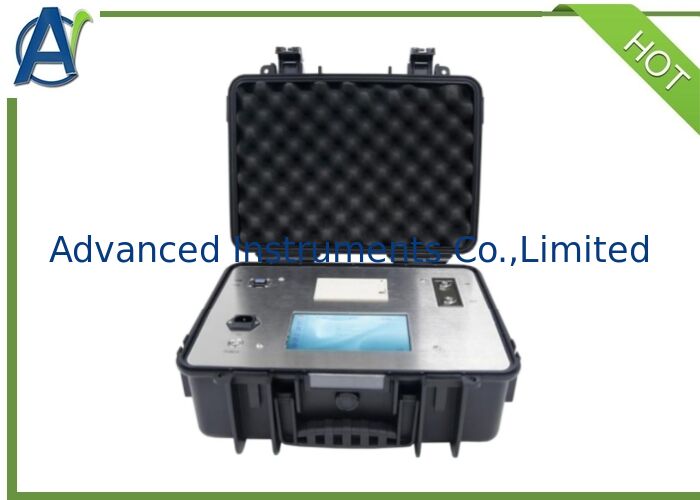

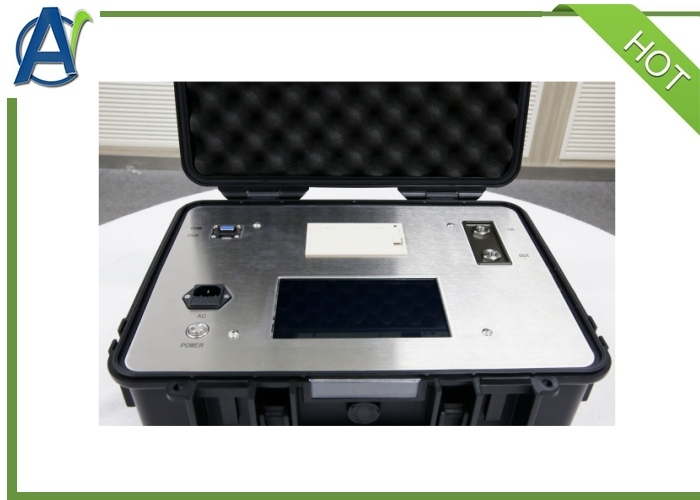

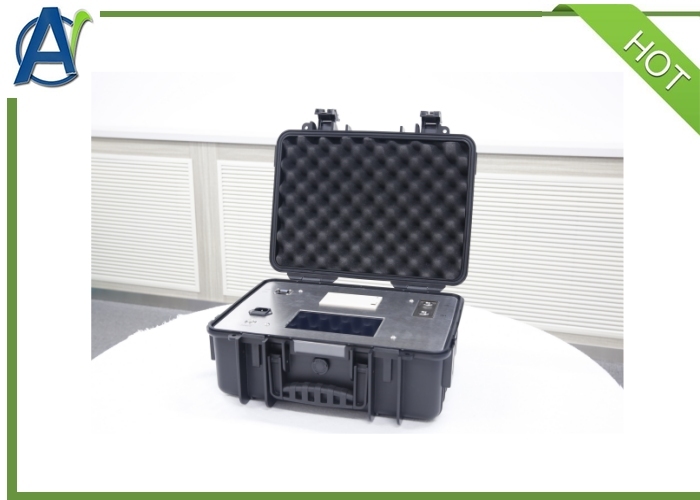

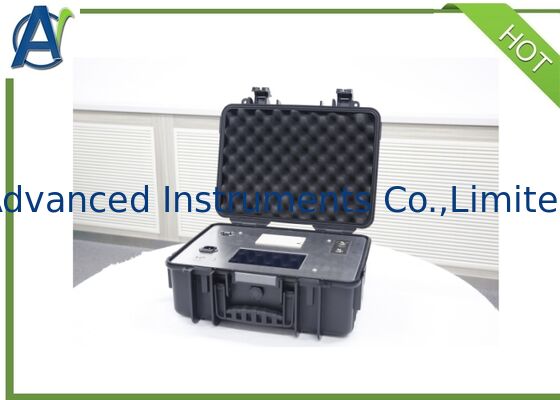

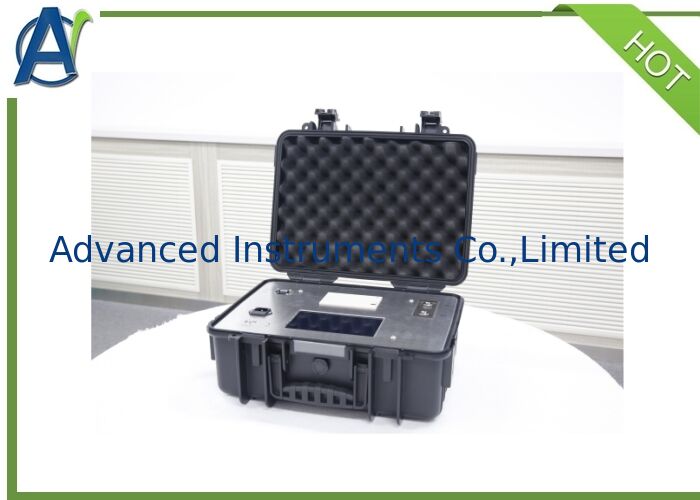

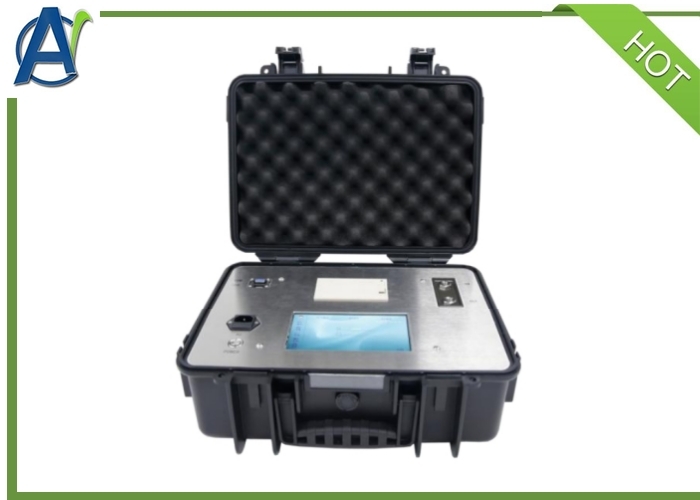

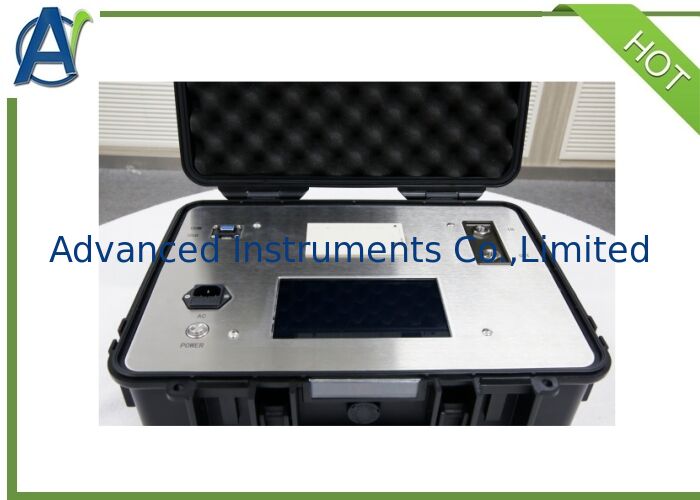

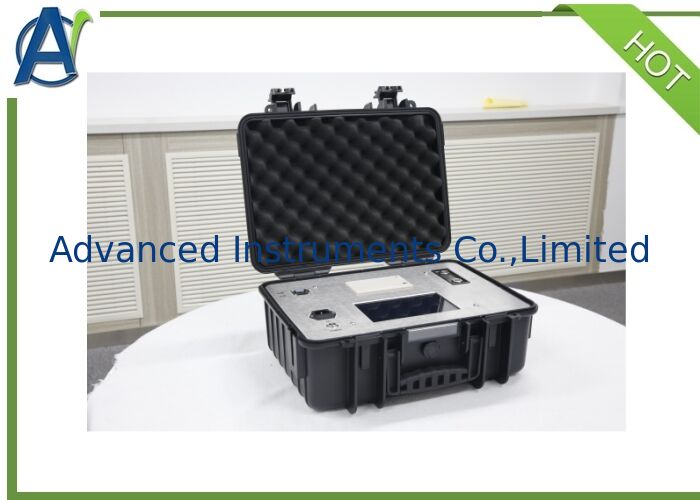

Portable Oil Particle Counter
I. Introduction:
Portable Lubricant Oil Particle Counter is photoresist (light shading) counting principle specified by the International Hydraulic Standards Committee.It is mainly for laboratory or on-site testing the degree of particle contamination and moisture in the oil. It has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure environment. It is applicable for the measurement of engine oil, gear oil, transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.
II. Main Features
III. Specifications:
| Parameter | Specification |
| Light Source | Semiconductor laser |
| Particle Size Range | 0.8 – 600 μm (Calibrated per ACFTD 1–100 μm or ISO MTD 4–70 μm(c)) |
| Detection Channels | 64 channels, user- settable particle sizes |
| Sampling Volume | 0.2-6000ml |
| Sampling Accuracy | Better than ±0.5% |
| Sampling Flow Rate | 5-80ML/MIN |
| Flush Flow Rate | 5-80ML/MIN |
| Flush Volume | Adjustable from 0 mL to 90 mL |
| Counting Accuracy | Error < ±5% |
| Resolution | Better than 6% |
| Repeatability | RSD < 2% |
| Coincidence Error Limit | 40,000 particles/mL |
| Temperature Measurement (Optional) | Range: -40 to 100 °C; Accuracy: ±0.5 °C |
| Moisture (Optional) | Water activity: 0–1 aw, Accuracy: ±0.03; Absolute water content: 1–360 ppm, Accuracy: ±10% |
| Viscosity (Optional) | 0.5 – 500 cSt, Accuracy: ±2% |
| Offline Viscosity Limit | ≤100 cSt (with optional pressure bottle sampler, up to 400 cSt) |
| Pressure Range | Low pressure: 0–0.6 MPa; High pressure: up to 42 MPa (optional pressure reducing valve) |
| Online Measurement Interval | User- settable |
| Screen Size | 7 inches |
| Sample Temperature Range | 0 °C – 80 °C |
| Operating Temperature Range | -20 °C – 60 °C |
| Storage Temperature Range | -30 °C – 80 °C |
| Power Supply | AC 90–240 V, 50/60 Hz |
| Battery Capacity | 5200 mAh |
| Battery Runtime | 6 – 8 hours |
| Dimensions | 420 × 326 × 182 mm |
| Weight | 9 kg |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
