| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | AI |
| Chứng nhận: | ISO9001 |
| Số mô hình: | KRL |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | USD$20,000~26,000 |
| chi tiết đóng gói: | hộp gỗ dán |
| Thời gian giao hàng: | 30 NGÀY |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây, L/C |
| Khả năng cung cấp: | 20 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | Cec L-45-a-99 | Bảo hành: | 1 năm trọn vẹn |
|---|---|---|---|
| nhãn hiệu: | Dụng cụ nâng cao | Dịch vụ OEM: | Có sẵn |
| Ngôn ngữ: | Tiếng Anh | Nguồn điện: | AC (220 ± 10%) V, 50Hz |
| ngôn ngữ phần mềm: | Tiếng Anh | Phương pháp kiểm tra: | Teost Mt |
| Độ chính xác nhiệt độ: | ± 2 | Số lượng mẫu: | 8.4G |
| Tốc độ dòng khí: | 10ml ± 0,2ml | Hoạt động: | Tự động |
| Phạm vi nhiệt độ: | Môi trường xung quanh ~ 500oC | Thời gian kiểm tra: | 24 giờ |
| Tốc độ dòng chảy của máy bơm: | 0,25g/phút | Trưng bày: | Dẫn đến |
| Thiết bị: | hóa dầu | Phạm vi kiểm soát nhiệt độ: | Môi trường xung quanh ~ -50oC |
| Tốc độ quay: | 1 vòng/phút | Đang tải khối lượng: | 400h |
| Phương pháp làm lạnh: | Máy nén khí kép Danfoss | phương pháp thời gian: | Hẹn giờ kỹ thuật số |
| đo mô-men xoắn: | Máy đo lực kỹ thuật số | Tổng công suất: | 2kw |
| Tối đa. Đang tải chiều cao không gian: | 80mm | <i>Max.</i> <b>tối đa.</b> <i>Test Width</i> <b>Chiều rộng kiểm tra</b>: | 200mm |
| Tối đa. du lịch chéo: | 80mm | tối đa. kiểm tra lực lượng: | 10 kN (có thể cài đặt tùy ý) |
| Lớp kiểm thử: | 0,5 | Kích thước máy chủ: | 570mm × 370mm × 845mm |
| Làm nổi bật: | KRL tapered roller bearing tester,lubricant shear stability tester,ISO 26422 oil test equipment |
||

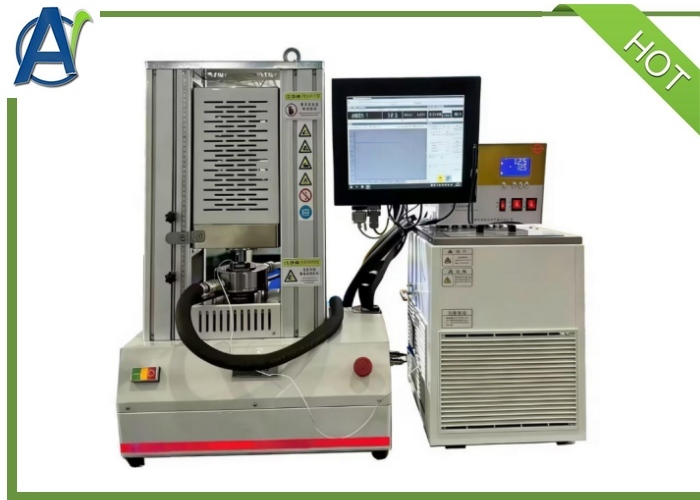

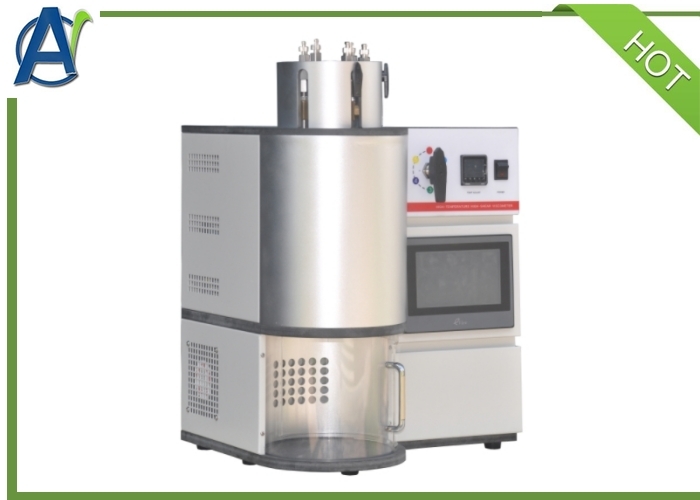

KRL Tapered Roller Bearing Shear Tester
I. Introduction:
KRL Tapered Roller Bearing method determines viscosity and shear stability of Transmission Lubricants,
This KRL Shear Stability Tester adopts LCD touch screen: through the screen, the oil sample temperature control, rotating shaft speed, test load, test time, shear revolution and other functions can be controlled. All key parameters and control points can be displayed at a glance, realizing a highly integrated and automated operation interface, which greatly reduces the operation difficulty of the experimenter.
II. Main Features
1. The equipment complies with NB/SH/T0845 test method. The system adopts microcomputer closed-loop control for loading force, servo motor for precise speed control, and intelligent temperature controller for constant temperature water bath maintenance. It features a wide range of loading speeds, high precision, and high sensitivity.
2. Multiple control modes can be combined for operation, with flexible test parameter settings and full-process operation management.
3. System composition: High-precision sensors + servo motor + dedicated controller + measurement & control software + branded microcomputer, fully automatic measurement and control platform.
4. Built-in 20+ domestic common data upload interfaces with expandable support functions.
5. Supports equipment parameter settings, online management, PID adjustment, and full-function sensor calibration & verification.
6. Supports real-time/historical curve display in single or multiple graphs, with preset or online coordinate settings; curve panning, zooming, and data traversal operations; feature point display, modification, and saving; curves can be printed independently or embedded in test reports.
7. Real-time automatic data saving effectively prevents data loss due to unexpected shutdowns.
8. Supports test data query and search management; customizable report content and format through report templates; editable formulas and result items to meet various test standards; supports generating reports from single or multiple data files, compatible with free editing of Word/Excel templates, with print output capability.
9. Test data query function: Quick search of previously completed test data and results by test time, test protocol, and other conditions.
III. Specifications:
|
Applicable standard
|
NB/SH/T0845-2010, CEC L-45-99
|
|
Max. Loading Space Height
|
80mm
|
|
Max. Test Width
|
200mm
|
|
Max. Crosshead Travel
|
80mm
|
|
Max. Test Force
|
10 kN (arbitrarily settable)
|
|
Tester Class
|
0.5
|
|
Test Force Measurement
Range |
0.4% - 100% FS
|
|
Test Force Measurement
Accuracy |
±0.5%
|
|
Test Force Resolution
|
1/500,000 of full scale (single resolution across full range, no gears)
|
|
Max. Test Speed
|
3000 r/min (arbitrarily settable)
|
|
Speed Accuracy
|
±0.5%
|
|
Host Dimensions
|
570mm × 370mm × 845mm
|
|
Approx. Weight
|
60kg
|
|
Power
|
1.0 + 0.4 kW
|
|
Power Supply
|
Single phase 220V±10%, 50Hz
|
|
Environmental Requirements
|
Vibration-free, dust-free; Ambient temperature
10℃~35℃; Humidity ≤80%; No vibration around, no corrosive media, no strong magnetic field interference. |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
