| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | AI |
| Chứng nhận: | ISO9001 |
| Số mô hình: | AIC-6082 |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | USD$4,500~5,000 |
| chi tiết đóng gói: | hộp gỗ dán |
| Thời gian giao hàng: | 30 NGÀY |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây, L/C |
| Khả năng cung cấp: | 20 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | ASTM D4170 | Bảo hành: | 1 năm trọn vẹn |
|---|---|---|---|
| nhãn hiệu: | Dụng cụ nâng cao | Dịch vụ OEM: | Có sẵn |
| Ngôn ngữ: | Tiếng Anh | Nguồn điện: | AC (220 ± 10%) V, 50Hz |
| ngôn ngữ phần mềm: | Tiếng Anh | Thiết bị: | hóa dầu |
| kiểu: | Bồn tắm tạo bọt | Chế độ sưởi ấm: | tắm nước |
| Đơn vị làm việc: | 2 | Tổng điện năng tiêu thụ: | 2500W |
| Kiểm soát dòng chảy: | Đồng hồ đo lưu lượng điện tử hoặc thông số quay | Tốc độ dòng chảy: | 200ml/phút ± 5ml/phút |
| Phạm vi nhiệt độ: | nhiệt độ phòng ~ 150℃ | ||
| Làm nổi bật: | ASTM D6082 foam test apparatus,high temperature foaming tester for engine oil,lubricating oil foaming characteristic tester |
||

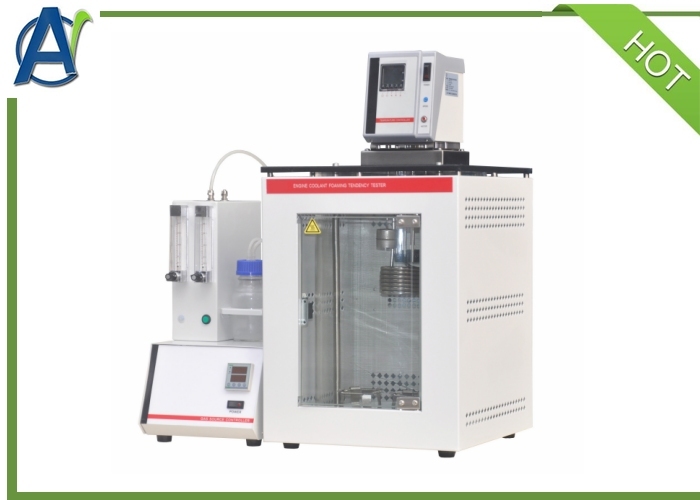

High Temperature Foam Test Apparatus
I. Introduction:
This Lubricating Oils Foaming Characteristics Tester is suitable for testing the foam properties of lubricating oils at 150ºC.
The sample was heated to 49ºC, kept at a constant temperature for 30 min, and then cooled to room temperature. Then the sample was transferred to a specified cylinder and heated to 150ºC. The air was passed through the metal diffusion head according to the standard etiquette and ventilated for 5 min,to determine the amount of static foam and the amount of exercise foam immediately before stopping ventilation, and the amount of static foam, the time the foam disappears, and the percentage increase in total volume after a specified period of time after cessation of ventilation.
II. Main Features
1. The High Temperature Foaming Characteristics Tester is split and includes a heated bath and an accurate flow meter.
2. High temperature resistant borosilicate glass cylinder,Φ300*450mm, in line with standard requirements.
3. Environmentally friendly oil bath heating, reducing the damage of oil smoke to the human body, efficient heat insulation effect.
4. Stainless steel heater is equipped on the Foaming Characteristics Tester.
5. Very accurate flow meter with precise control at 200mL/min ± 5mL/min.
6. The High Temperature Foaming Characteristics Tester has an air filter with glass wool.
7. Microprocessor thermostat and PID control, digital display temperature, accuracy 0.1ºC, Pt100 RTD temperature probe.
8. Operating temperature range: room temperature to 150ºC; safety measures to prevent overheating or low liquid level.
III. Specifications:
| Applicable standard | ASTM D6082, SH/T0722 |
| Temperature control mode | imported PID digital display thermostat |
| Temperature control accuracy | ±0.1ºC |
| Temperature control range | Room temperature ~ 150ºC |
| Heating method | water bath heating |
| Machine power | 2.5KW |
| Working unit | 2 tubes |
| Flow control | relectronic flow meter, LCD touch screen digital display |
| Timing mode | LCD touch screen automatic timing |
| Working power supply | AC220v/50Hz |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
