| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | AI |
| Chứng nhận: | ISO9001 |
| Số mô hình: | AIC-6082 |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | USD$4,500~5,000 |
| chi tiết đóng gói: | hộp gỗ dán |
| Thời gian giao hàng: | 30 NGÀY |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây, L/C |
| Khả năng cung cấp: | 20 bộ mỗi tháng |
| tiêu chuẩn kiểm tra: | ASTM D217, ISO 2137 | Bảo hành: | 1 năm trọn vẹn |
|---|---|---|---|
| nhãn hiệu: | Dụng cụ nâng cao | Dịch vụ OEM: | Có sẵn |
| Ngôn ngữ: | Tiếng Anh | Nguồn điện: | AC (220 ± 10%) V, 50Hz |
| Thiết bị: | hóa dầu | Phạm vi đo: | Độ xuyên thấu 0 ~ 620 |
| dải đo nhiệt độ: | 0,00 ~ 99,99oC | Độ phân giải màn hình: | 0,01 |
| Kiểm soát nhiệt độ chính xác: | ≤ ± 0,5 ℃ | Hiển thị và kiểm soát thời gian: | 0-60 giây (cài đặt ngẫu nhiên); |
| Làm nổi bật: | Automatic grease penetrometer ASTM D217,Grease cone penetrometer ISO 2137,Oil test equipment with ASTM compliance |
||

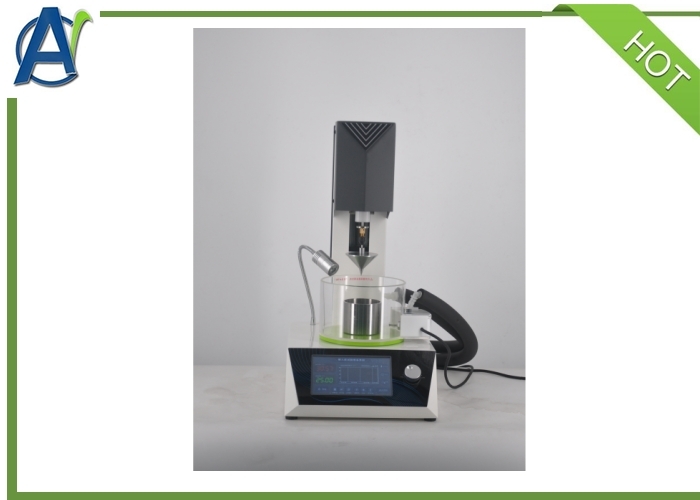

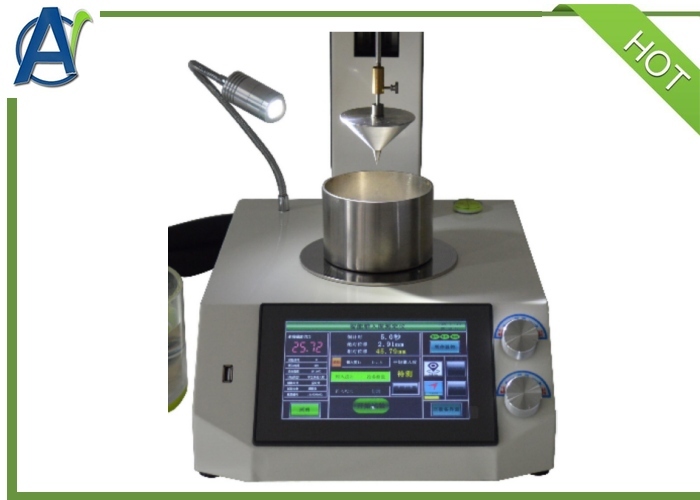

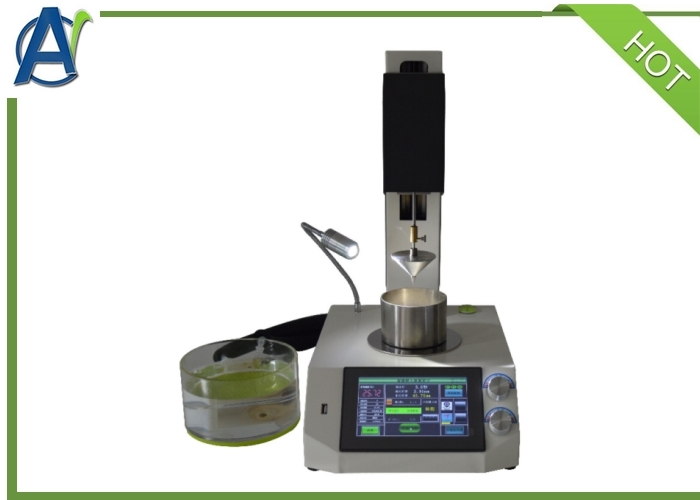

Automatic Grease Cone Penetrometer
I. Introduction:
The automatic grease cone penetration tester is an innovative patented product with independent knowledge designed and manufactured in accordance with the technical requirements and relevant regulations of the China standard GB/T 269-91 Determination of Cone Penetration of Lubricating Grease and Petrol Grease, and with reference to the international standard ISO2137 Determination of Cone Penetration of Lubricating Grease and Petroleum.
This instrument is mainly suitable for measuring the consistency of lubricating grease and petroleum grease, and can also be used for measuring the consistency of oil wax that has not undergone sweating and deoiling; This instrument also conforms to the testing performance specified in GB1790-2003 Pharmaceutical Vaseline. It is widely
used to measure the hardness and softness of lubricating grease, Vaseline, pharmaceutical Salve products or other semi-solid substances, and plays an important role in the process of design, quality control, and identification of product characteristics.
II. Main Features
III. Specifications:
| Measuring range | 0~620 penetration |
| Costant Water bath | Temperature measuring range:0.00~99.99℃; Temperature controlling range: Low temperature:About 15 ℃ lower than the ambient temperature High temperature:60.00℃; Display resolution:0.01℃; Temperature controlling accuracy:≤±0.5℃; |
| Time control | Time display and control: 0-60 seconds (setting at random); Display resolution:0.1 s; Timing accuracy: ≤ ± 0.1 S; |
| Displacement | Adopting high-precision LVDT displacement sensors and a split structure, the cone rod falls without friction. Range: 0-65mm; Display resolution:0.01mm (0.1 cone penetration); Relative displacement accuracy:≤ ± 0.1mm; |
| Data storage | 200 groups |
| Slide assembly | The total mass of the full size component is 150 ± 0.05g. Among them: Full size cone mass 102.5 ± 0.05g, cone rod mass 47.5 ± 0.05g; Comply with the requirements of GB/T 269-91 standard; |
| Overall dimension | 390mm×310mm×575mm(L×W×H) |
| Power supply | 220±10%VAC/50Hz; |
| Total power consumption | Max 350W |
| Weight | 12.5KG |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
