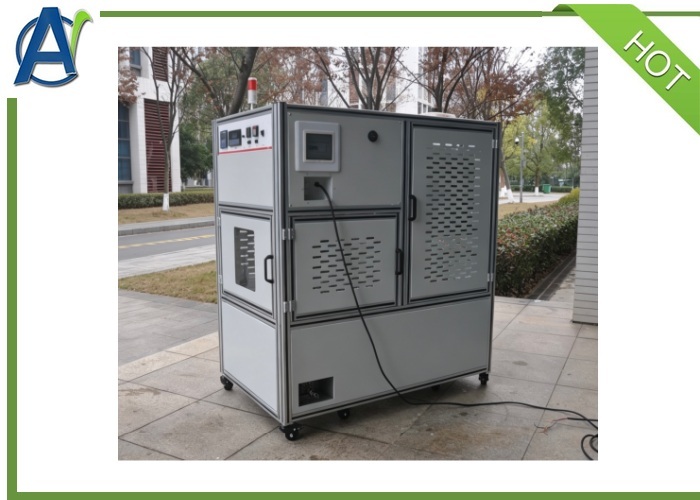

Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment

Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment
Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment
Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: AI
Chứng nhận: ISO9001
Số mô hình: AIC29743.2
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: USD$25,000~30,000
chi tiết đóng gói: hộp gỗ dán
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: T/T, Công Đoàn Phương Tây, L/C
Khả năng cung cấp: 20 bộ mỗi tháng
Giá tốt nhất Liên hệ với bây giờ
Ngôn ngữ: Tiếng Anh Dịch vụ OEM: Có sẵn
Kiểm soát nhiệt độ: Bộ điều khiển nhiệt độ PID kỹ thuật số nhãn hiệu: Dụng cụ nâng cao
Bảo hành: 1 năm trọn vẹn tiêu chuẩn kiểm tra: GB29743.2
Cầm tay: Không di động Phạm vi dòng chảy: 0 ~ 50L/phút
Kiểm soát dòng chảy chính xác: ±5% Phương pháp sưởi ấm: Băng sưởi ấm bọc
Kiểm tra thời gian làm việc: 1064H Phạm vi kiểm soát nhiệt độ: Nhiệt độ môi trường xung quanh ~ 100°C
Độ chính xác kiểm soát nhiệt độ: ±2°C Chế độ hẹn giờ: Hẹn giờ hiển thị kỹ thuật số
Làm nổi bật:

Electric Vehicle Coolant Test Bench

,

Cooling Fluid Cycle Test Equipment

,

GB 29743.2 Standard Test Bench

EV Coolant Circulation Test Bench

I. Introduction:

Place the EV coolant into a closed test assembly consisting of a radiator, water pump, power battery cooling plate, liquid storage tank and connecting rubber hoses. Circulate the coolant for 1064 hours at 80°C under a specified flow rate. After the test, evaluate the corrosion protection performance of the EV coolant by measuring the mass change of typical metal test coupons installed in the liquid storage tank and inspecting the inner surface condition of all components in the circulation system.

Application Scope

  1. Manufacturers of engine coolants
  2. Inspection & testing institutions

II. Main Features

  1. This Electric Vehicle Coolant Circulation Test Bench consists of operation & display unit, heating control system, rotating speed control system, pressure control system, flow control system and supporting assemblies.
  2. Condenser: Reduces test pressure to simulate actual vehicle working conditions.
  3. Storage Reservoir: Delivers catalytic effect.
  4. Glass Tube: For visual observation of sample circulation status.
  5. Standard metal test coupons: 7 coupons per set, 3 sets in total.
  6. Wrapped belt heater: Ensures uniform heating.
  7. Special aluminum automotive pump for test circulation loop.
  8. A heat-resistant glass viewing window is fitted on the upper part of the radiator.
  9. A thermometer socket is arranged on the storage reservoir for temperature calibration.
  10. Brass bracket, capable of mounting three sets of test coupons.
  11. Microcomputer temperature controller with digital display, temperature accuracy ±2℃, equipped with PT100 sensor.
  12. Digital timer for recording test duration.
Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment 0

III. Specifications:

Applicable Standards
GB 29743.2
Flow Range
0~50L/min
Flow Control Accuracy
±5%
Heating Method
Wrapped Heating Tape
Test Working Duration
1064h
Temperature Control Mode
Digital PID Temperature Controller
Temperature Control Range
Ambient Temperature ~ 100°C
Temperature Control Accuracy
±2°C
Timing Mode
Digital Display Timer
Power Supply
AC220V / 50Hz
Working Pressure
80~103 kPa, displayed by pressure gauge
Measuring Resolution
0.1°C
Total Machine Power
4 KW

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
